10.19. Image Mapped Input Problem #

Note

Upskilled does not support this problem type.

In an image mapped input problem, also known as a “pointing on a picture” problem, students click inside a defined region in an image. You define this region by including coordinates in the body of the problem.

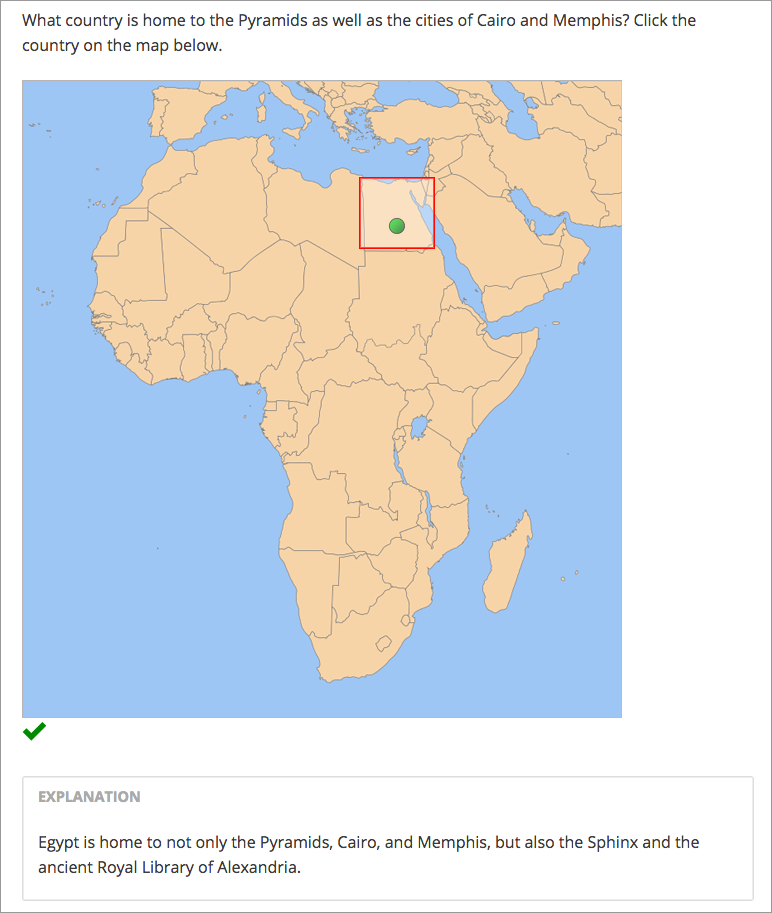

Problem that asks learners to click inside Egypt on a map of Africa.

You can specify the following types of regions.

Note

When you create a problem that contains an image, you must include alt text for your image to make the image accessible.

10.19.1. Create an Image Mapped Input Problem #

To create an image mapped input problem, follow these steps.

  1. Collect the information that you need for the image.

  2. Create the problem in Studio.

10.19.1.1. Collect Image Information #

To create an image mapped input problem, you need the following elements.

  • The height and width of the image in pixels.

  • Coordinate pairs that define the region or regions where you want learners to click.

To collect the information you need about your image, use an image editing tool such as Microsoft Paint.

Note

The coordinate pairs for all images start with (0,0) in the upper-left corner of the image and increase in value toward the lower-right corner, similar to the progression of reading English.

  • To specify a rectangular region, you need two coordinate pairs: the upper-left corner and the lower-right corner.

  • To specify more than one rectangle, you need the coordinate pairs for the upper-left and lower-right corners of each rectangle.

  • To specify an irregular region, you need three or more coordinate pairs. Studio creates the simplest possible shape based on these coordinate pairs. You can enter the coordinate pairs in any order.

    For example, for a triangle, you need three coordinate pairs. For an octagon, you need eight coordinate pairs.

10.19.1.2. Create an Image Mapped Input Problem in Studio #

  1. In Studio, upload your image to the Files & Uploads page, and make a note of the file path for the image. For more information, see Adding Files to a Course.

  2. In the unit where you want to create the problem, click Problem under Add New Component.

  3. In the problem editor, select Advanced problem types. Then select Image Mapped Input.

  4. In the component editor, replace the example problem text with your own text.

  5. In the <imageinput> element, follow these steps.

    1. Replace the example file path in the src attribute with the file path for your image.

    2. Include alt text for your image to make the image accessible. For more information about alt text, see Use Best Practices for Describing Images.

    3. Replace the example values for the width and height attributes with the dimensions for your image.

    4. Modify the example rectangle attribute to reflect the shape and size of the region that you want to specify. For more information, see Specify a Rectangular Region, Specify Multiple Rectangular Regions, or Specify an Irregular Region.

  6. Click Save.

10.19.1.2.1. Specify a Rectangular Region #

To specify a rectangular region, edit the rectangle attribute in the <imageinput> element.

  • Specify the coordinate pair for the upper-left and lower-right corners of the rectangle, separating the x and y values with a comma.

  • Surround each coordinate pair with parentheses.

  • Use a hyphen to separate the coordinate pairs.

  • Surround the set of coordinate pairs with quotation marks (“).

For example, the following rectangle attribute creates one rectangle from two coordinate pairs:

rectangle="(338,98)-(412,168)"

Problem Code:

<problem>

 <p>What country is home to the Pyramids as well as the cities of
 Cairo and Memphis? Click the country on the map below.</p>

 <imageresponse>
   <imageinput src="/static/Africa.png" width="600" height="638"
 rectangle="(338,98)-(412,168)" alt="Map of Africa" />
 </imageresponse>

 <solution>
   <div class="detailed-solution">

     <p>Explanation</p>

     <p>Egypt is home to not only the Pyramids, Cairo, and Memphis, but also the
 Sphinx and the ancient Royal Library of Alexandria.</p>

   </div>
 </solution>

</problem>

10.19.1.2.2. Specify Multiple Rectangular Regions #

You can specify more than one rectangular region in an image.

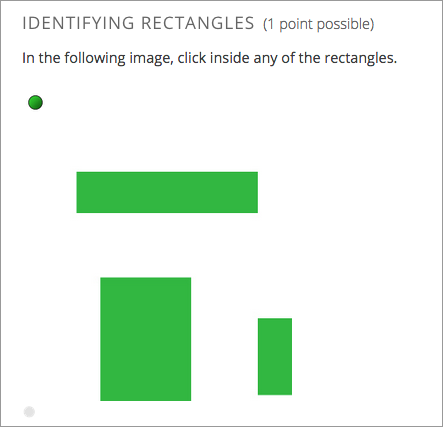

Problem that asks learners to click inside one of three rectangles

To specify multiple rectangular regions, edit the rectangle attribute in the <imageinput> element.

  • Specify the coordinate pair for the upper-left and lower-right corners of each rectangle, separating the x and y values with a comma.

  • Surround each coordinate pair with parentheses.

  • Use a hyphen (-) to separate the coordinate pairs.

  • Separate each rectangle with a semicolon (;).

  • Surround the entire set of coordinates with quotation marks (“).

For example, the following rectangle attribute creates three rectangles:

rectangle="(62,94)-(262,137);(306,41)-(389,173);(89,211)-(187,410)"

Problem Code:

<problem>

 <p>In the following image, click inside any of the rectangles.</p>

   <imageresponse>

     <imageinput src="/static/imageresponse_multipleregions.png" width="450"
       height="450" rectangle="(62,94)-(262,137);(306,41)-(389,173);(89,211)-
       (187,410)" alt="Three rectangles on a white background" />

   </imageresponse>

</problem>

10.19.1.2.3. Specify an Irregular Region #

You can specify one non-rectangular region.

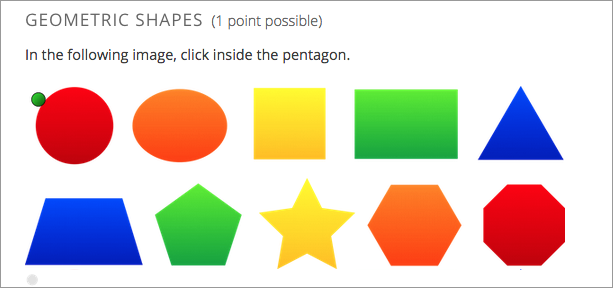

Problem that asks learners to click inside a pentagon.

To specify an irregular region, edit the rectangle attribute in the <imageinput> element.

  • Change rectangle to region.

  • Specify three or more coordinate points in any order.

  • Enter each coordinate pair in brackets ([]). Do not use parentheses.

  • Separate each set of points with a comma (,) and a space.

  • Enclose the whole list of coordinate points in brackets ([]).

  • Surround the outer brackets with quotation marks (“).

For example, the following regions attribute creates a pentagon.

regions="[[219,86], [305,192], [305,381], [139,381], [139,192]]"

Problem Code:

<problem>

 <p>In the following image, click inside the pentagon.</p>

 <imageresponse>

   <imageinput src="/static/imageresponse_irregularregions.jpg" width="600"
   height="204" regions="[[219,86], [305,192], [305,381], [139,381],
   [139,192]]" alt ="A series of 10 shapes including a circle, triangle,
   trapezoid, pentagon, star, and octagon" />

 </imageresponse>

</problem>

10.19.2. Image Mapped Input Problem XML #

10.19.2.1. Template #

<problem>

  <p>Problem text</p>

      <imageresponse>

       <imageinput src="IMAGE FILE PATH" width="NUMBER" height="NUMBER"
       rectangle="(X-AXIS,Y-AXIS)-(X-AXIS,Y-AXIS)" alt="DESCRIPTION OF
       IMAGE" />

      </imageresponse>

</problem>

10.19.2.2. Tags #

  • <imageresponse>: Indicates that the problem is an image mapped input problem.

  • <imageinput>: Specifies the image file and the region in the file that the learner must click.

Tag: <imageresponse>

Indicates that the problem is an image mapped input problem.

Attributes

(none)

Children

  • <imageinput>

Tag: <imageinput>

Specifies the image file and the region in the file where learners must click.

Attributes

Attribute

Description

src (required)

The URL of the image

height (required)

The height of the image, in pixels

width (required)

The width of the image, in pixels

rectangle (required) (or, for irregular regions, region)

An attribute with two or more coordinate pairs that define the region where learners should click

alt (required)

A description of the image, used for accessibility

Children

(none)
